Metal Cutting Disc/ Abrasive Disc for PDC Cutter

FOB Reference Price:Get Latest Price
US $8-100 / Piece | 5 Piece/Pieces (Min. Order)
Supply Ability:
2000 Piece/Pieces per Month
Port:
Qingdao, Shanghai, Tianjin
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
YWD
Model Number:
Grinding Wheel
Type:
Abrasive Disc
Size:
accord to your requirement
Packaging & Delivery
Packaging Details
wooden carton
Delivery Time
within 10 days after we receive payment





Product Description



Grinding Wheel



1.Diamond grinding wheels are mainly used for grinding and polishing removal,deburring,chamfering, smoothing and shaping stone products such as Granite , Marble, Sandstone, Limestone, etc aggressively material smooth finish.



2.Also Ideal for Grinding Concrete Porcelain tiles, masonry, artificial stone surfaces as well as stock removal.



3.Applicable for grinding and polishing glass, HSS, carbide, tungsten steel, stones, concrete, ceramic, asphalt and so on.



Ordering Instructions:



When ordering, we may act according to the different processing request, assists the user to choose suitablly cuts the grinding wheel. At the appointed time asks the user to provide:



* Model (1A8, 1A1, 1A1R, 1B1 and so on)



* Size (Outer Diameter, thickness, inside diameter, grinding compound work level width, substrate              thickness and so on)



* Specification ( grinding compound, granularity, cement and so on)



* The use( the workpiece name, cuts the size, suts the material, the frooving, shuts off and so on)



* The exploitation conditions( the engine bed, the grinding wheel speed, enters for the speed, cuts the depths, the dry type cuts wet type, cuts and so on)



* Cuts the request( to cut precision, rip request, superficial integrity, grinding wheel life and so on)



* Special request( for example: Whether thr group knife use, the resin do cut the grinding wheel whether needs the electric conduction, the substrate cuts the grinding wheel outer annulus whether brings the water trough, 1A1 to cut outside the grinding wheel substrate the side whether does have the platoon chip space and so on.)



We can provide sample for check quality!

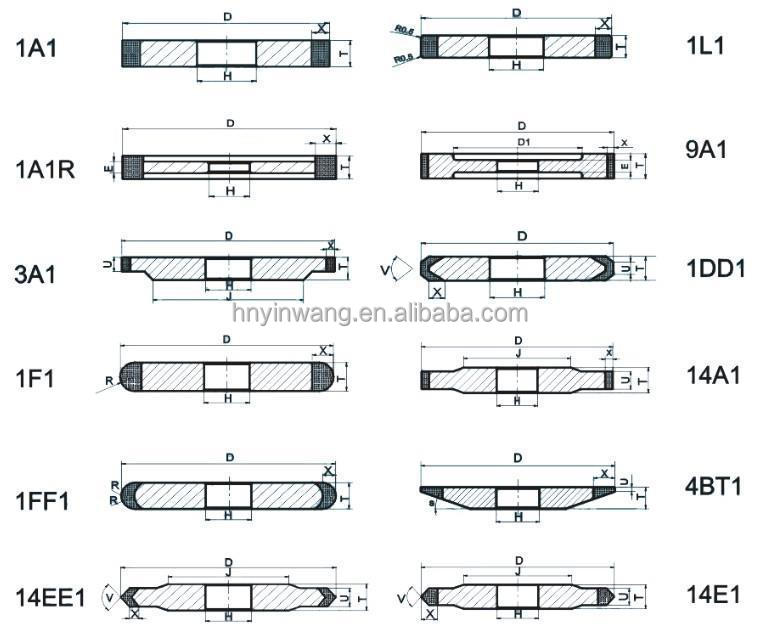

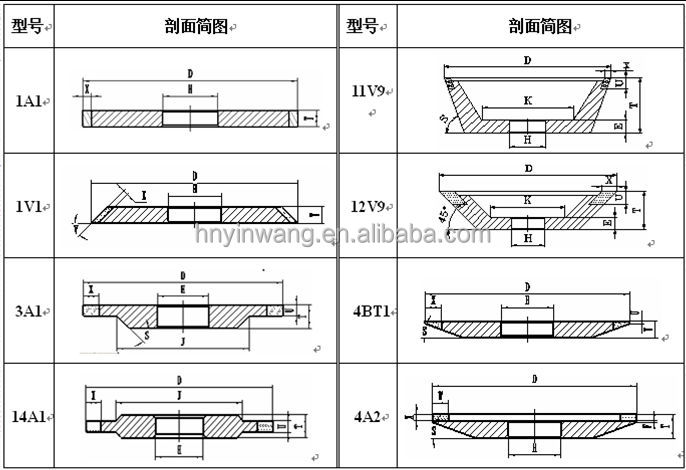

Common Shapes of Grinding Wheel:





Features and Applications of 4 Kinds Bond

Resin Bond Products Series

Features:

The resin bond products have the features of good self-sharpening, sharp cutting, high efficiency, low roughness of work piece surface, few heat generating and without burning workpiece. They are suitable for high efficiency and precision grinding of most workpieces. Our institute is able to provide resin bond superabrasive grinding wheels according to the standard GB/T6409.2-1996. The diameter range is 10--700mm, the thickness range is 0.07--300mm, the grit size range is 60/70---w3.5. We can also design and make nonstandard grinding wheels according to customer's requirement.

Application:

Resin bond diamond products: mainly used for machining tungsten carbide, ceramic materials, magnetic materials, silicon materials, thermal spraying alloy materials and so on.

Resin bond CBN products: mainly used for machining high speed steel, cast iron and so on.

Vitrified Bond Products Series

 Features:

Vitrified products have the features of sharp cutting, high efficiency, long life, less heat and jam generated in grinding, easy control of the precision and easy dressing.

Our institute is able to provide vitrified superabrasive grinding wheels according to the standard GB/T6409.2--1996. The diameter range is 8--750mm, the thickness range is 1--300mm, the grit size range is 60/70--w3.5. We can also desigh and make nonstandard grinding wheels according to customers' requirement.

 Application:

Vitrified diamond products: mainly used for machining tungsten carbide, PCD, PCBN, ceramic, cermet, etc.

Vitrified CBN products: mainly used for machining cast iron( alloy cast iron, chilled cast iron, nodular cast iron, etc.), (45#, 55#, 20Cr, etc.)

Metal Bond Products Series

 Features:

The features of the metal bond products are high efficiency, good self-sharpening, high stock removal, strong hold and good abrasion resistance.

Our institute is able to provide metal bond superabrasive grinding wheels according to the standard GB/T6409.2--1996. The diameter range is6--500mm. the thickness range is 0.07--300mm, the grit size range is 30/35---w3.5. we can also design and make nonstandard grinding wheels according to customers' requirement.

 Application:

Metal bond diamond products: mainly used for machining quartz crystal, tingsten carbide, ceramics, glass, com materials and so on.

Metal bond CBN products: mainly used for machining high speed steel, tool steel, mould steel, stainless steel, titanium alloy and so on.

Electroplated Bond Products Series

 Features:

The electroplated grinding wheels have characteristics of high grain density, sharp grinding, high efficiency, good precision, without dressing etc. The product can be made with various shapes and they are suitable for special complicated profile, super-thin, especially small and other form grinding which have strict requirement on geometry shape and dimension. Therefore it improves the process efficiency and a lot of tools which are difficult to process with other methods can be solved here.

 Application:

Electroplated diamond products: mainly used for machining nonmetallic materials with high rigidity like ceramics, glass, tungsten carbide, ferrite and so on.

Electroplated CBN products: mainly used for machining metallic material such as chilled cast iron, founded alloy steel, titanium alloy and so on.

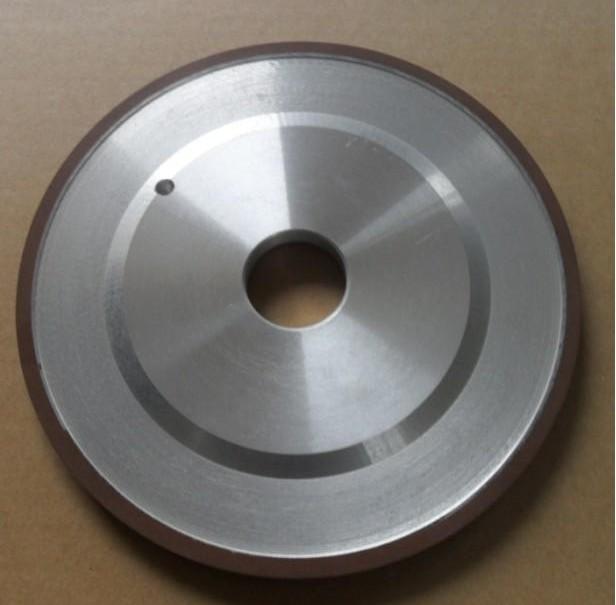

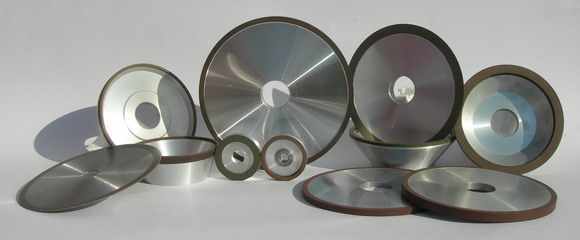

 Photos as below for you reference:





Packaging & Shipping









Company Information



Henan Yinwang Trade Co., Ltd is a high-tech company mainly engaged in synthetic diamond and its related products. Being the first class in superabrasive area is our lasting aim. We have scientific management idea, perfect management procedure and excellent team, which guarantee the leading position of our products in this area. We can meet different needs of different clients. Our main products include:

1. Synthetic diamond (big size diamond, small size diamond grit, synthetic diamond mono plate, diamond powder)

2. CVD diamond

3. PCD cutting tool blanks.

4. Cutting and grinding tools (diamond dicing blade, resin bond diamond cutting wheel and vitrified bond CBN grinding wheel)

 International Exhibition:

Qualification:

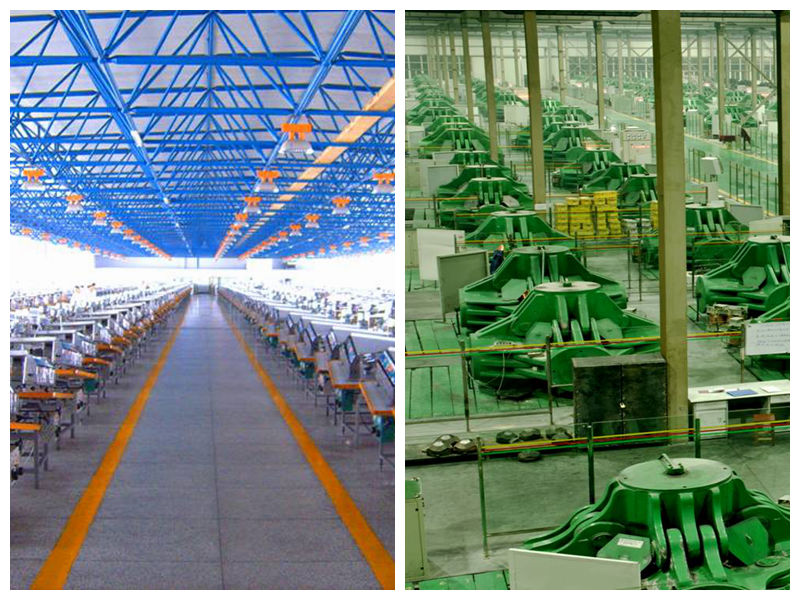

Factory Photos:
