vitrified diamond grinding wheel for bruting natural diamond

FOB Reference Price:Get Latest Price
US $70-150 / Pieces | 2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Model Number:
6A2 11A2 12A2 12V9 1A1
Type:
Abrasive Disc
SupplyAbility
SupplyAbility:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
foamed carton
Port
zhengzhou
Lead Time :
within 2 weeks after payment





vitrified diamond grinding wheel for bruting natural diamond





Product Description

 Feathers:

1. High grinding efficiency than that of metal bonded diamond grinding wheel

2. High abrasion resistance and less abrasive consumption

3.Small grinding force and low grinding temperature

4.High grinding precision of the work piece, good surface quality and good maintenance of the shape of workpiece



Application:

They are widely used in the fields of tungsten carbide, ceramics, glsasses, PCD, PCBN, CVD, natural diamond, stones, etc.



Advantage:

1.high quality of PCD & PCBN insert edges after sharpening;
2.short grinding time&long tool life

3.high efficiency and accuracy of sharpening;
4.remarkable decreasing of unitary grinding costs

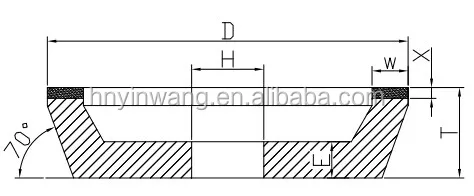

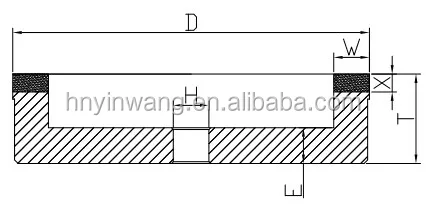

drawing pictures and specification:






D(mm)

T(mm)

H(mm)

W(mm)

X(mm)

6A2

100

40

20/32/40

5/10/15

10

125

40

32/40

5/10/15

10

150

40

32/40

5/10/15

10

11A2

100

40

20/32/40

3/5/10

3-10

125

40

32/40

3/5/10

3-10

150

40

32/40

3/5/10

3-10





Grain size selection of vitrified diamond grinding wheel:

Grain   Size

Machining   type

Application

D35

D20

Rough

Regrinding   a blade edge profiling and sharpening of much worn inserts.

D15

Universal

Standard   grain size-can also getting a high sharpening efficiency and good quality   machined surfaces .

D9

Finish

Finishing   grinding – getting a very good quality of machined surfaces.

D6

Super   finish

Super   finish grinding – getting a brilliant quality of machined surfaces.



How to sharp the tools with PCD & PCBN inserts?

Tools with PCD&PCBN inserts are very reten-tive, but demand an occasional sharpen-ing. In comparison with conventional tool mate-rials, the sharpening of PCD&PCBN tools requires another approach in scope of grindingmethods and grindingwheels char-acteristics. The sharpening of polycrystalline tools is a very challenging task both for users and for wheel manufacturers.

To ensure the proper condition of PCD&PCBN sharpening process the following fac-torsare indispensable:
high precision grinding machine with stiff construction and vibration dampening system which can guarantee high preci-sion grinding, demanded during sharp-ening of PCD & PCBN inserts; specially designed grinding wheels ap-propriate for high efficient and precision machining, which assures getting an ex-cellent blade edge quality.



Packaging & Shipping


Our Services

Machining parameters selection



Grinding velocity

20   m/s – recommended;

15÷30   m/s – acceptable*

Allowance
  rough grinding:
  standard grinding:
  finish grinding:

0,02÷0,05   mm / pass

0,01÷0,025   mm / pass

0,005÷0,01   mm / pass

Oscillation frequency

60   1/min – recommended

50÷120   1/min – acceptable

Number of sparking
  out passes

3÷8

Recommended
  abrasive stick

Aluminium   oxide abrasive stick
  5410 - 20x10x100 99A 320 J7V

Coolant

Water-oil   emulsion 3÷5%


  Remarks

Infeed   of grinding wheel must be done always out of machining
  zone.



Company Information



Henan Yinwang Trade Co., Ltd is a high-tech company mainly engaged in synthetic diamond and its related products. Being the first class in superabrasive area is our lasting aim. We have scientific management idea, perfect management procedure and excellent team, which guarantee the leading position of our products in this area. We can meet different needs of different clients. Our main products include:



1. Synthetic diamond (big size diamond, small size diamond grit, synthetic diamond mono plate, diamond powder)

    CVD diamond

2. PCD cutting tool blanks.

3. Cutting and grinding tools (diamond dicing blade, resin bond diamond cutting wheel and vitrified bond CBN grinding      wheel)



Adhering to the motto of "build the business on mutual trust and benefit", we endeavor to provide our customers with reliable products, comprehensive service and rewarding return.



We welcome customers, business associations and friends from all over the world to contact us and seek cooperation for mutual benefits.

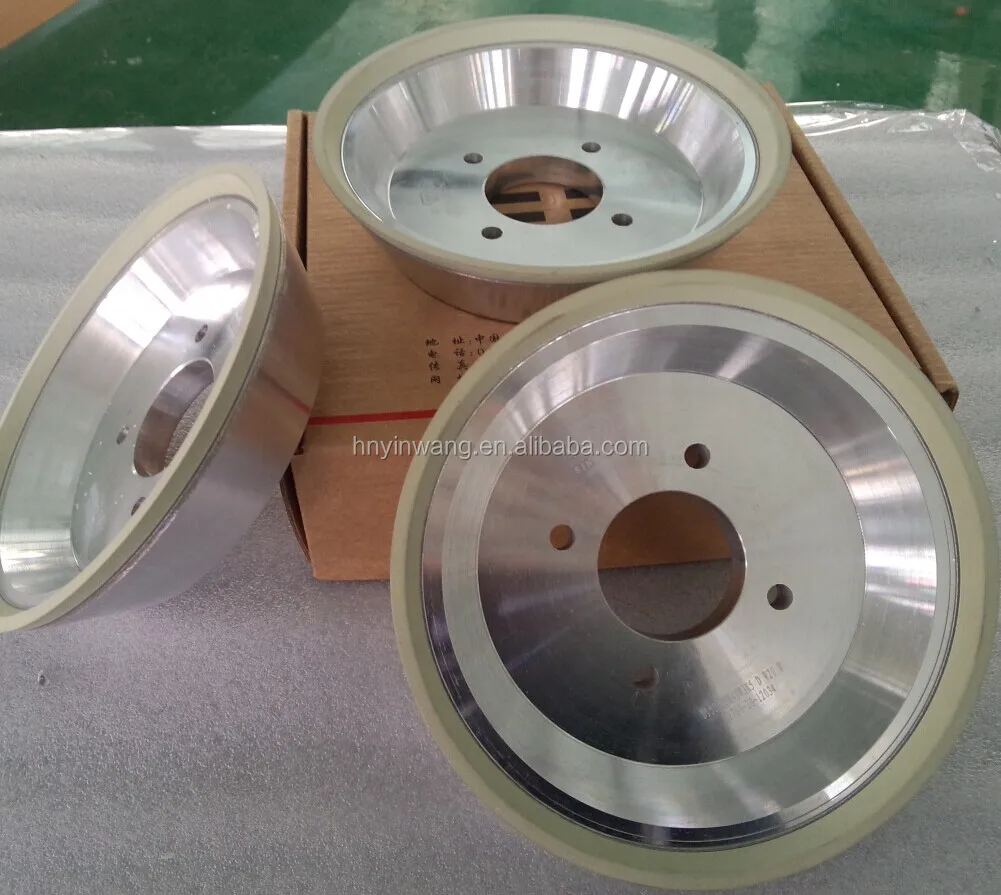

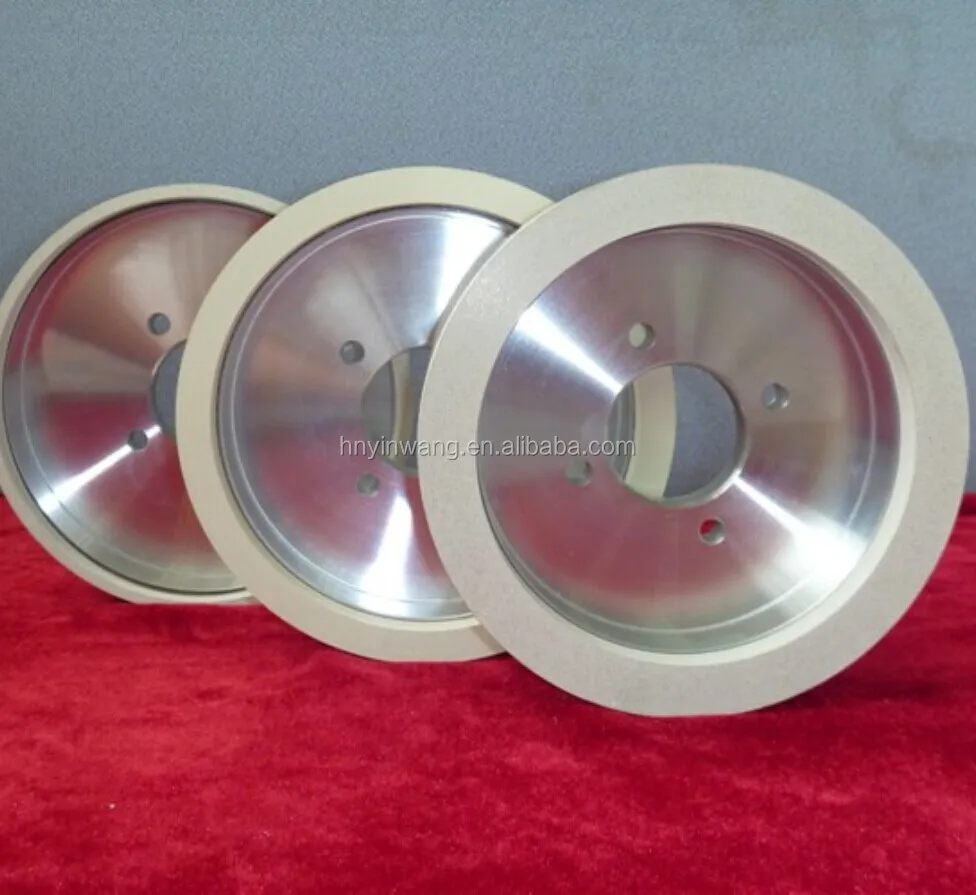

Photos for reference:



QQ20140806141442.jpgwheel 2.jpg



FAQ

1. what's your MOQ ?

     MOQ is 2 pcs for testing purpose

2. any discount ?

    yes, after sample testing, and in next order price will determined by your quantity.

3. Is your quality assured ?

    we have different quality products, we will provide you most suitable quality products according to

    your detailed requirements.
