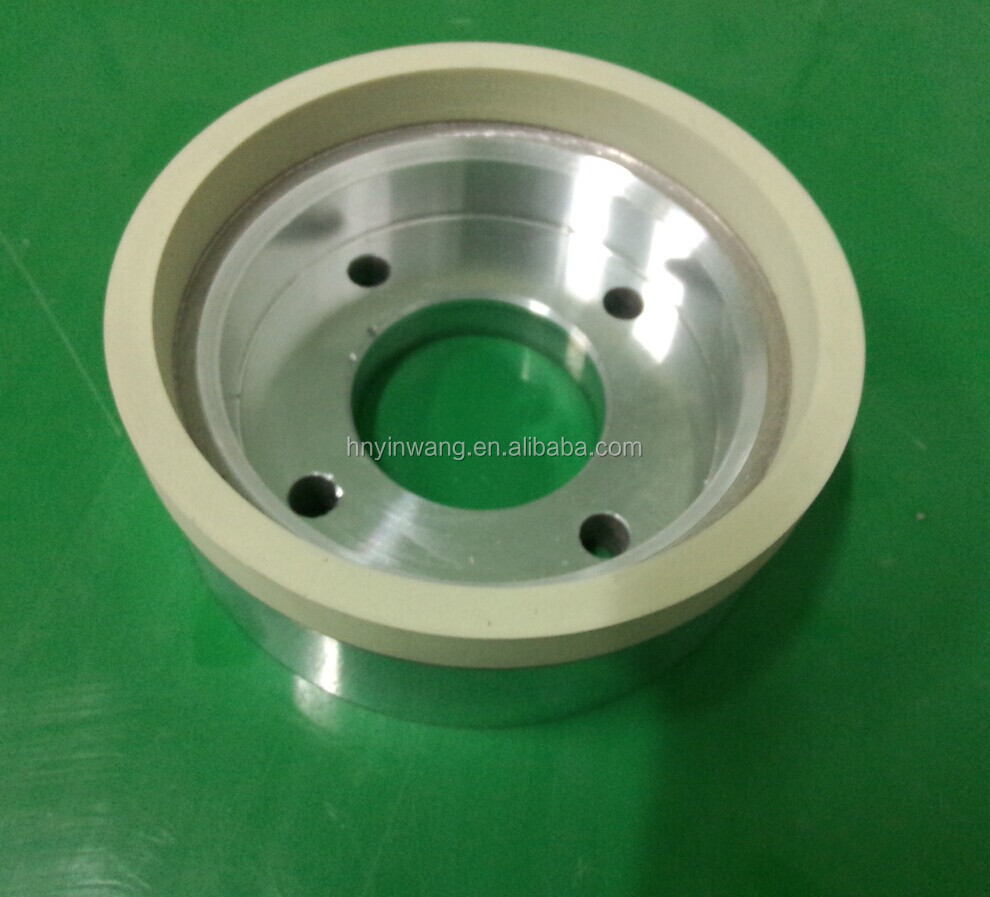

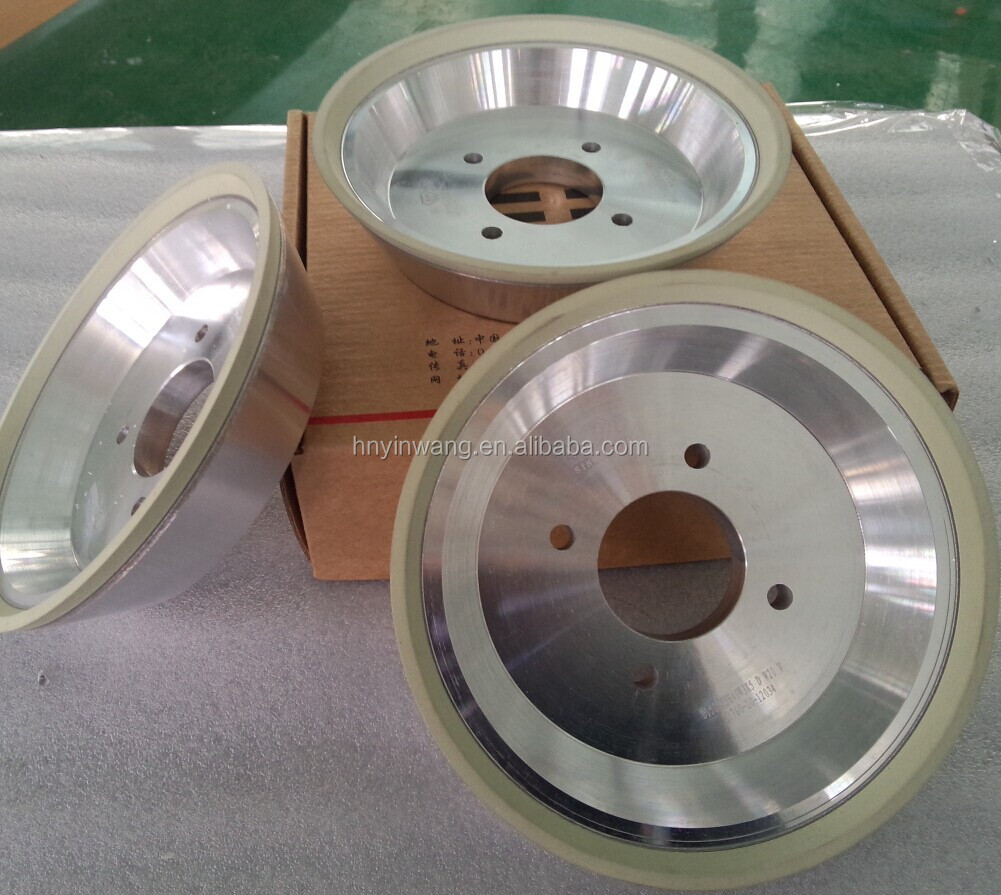

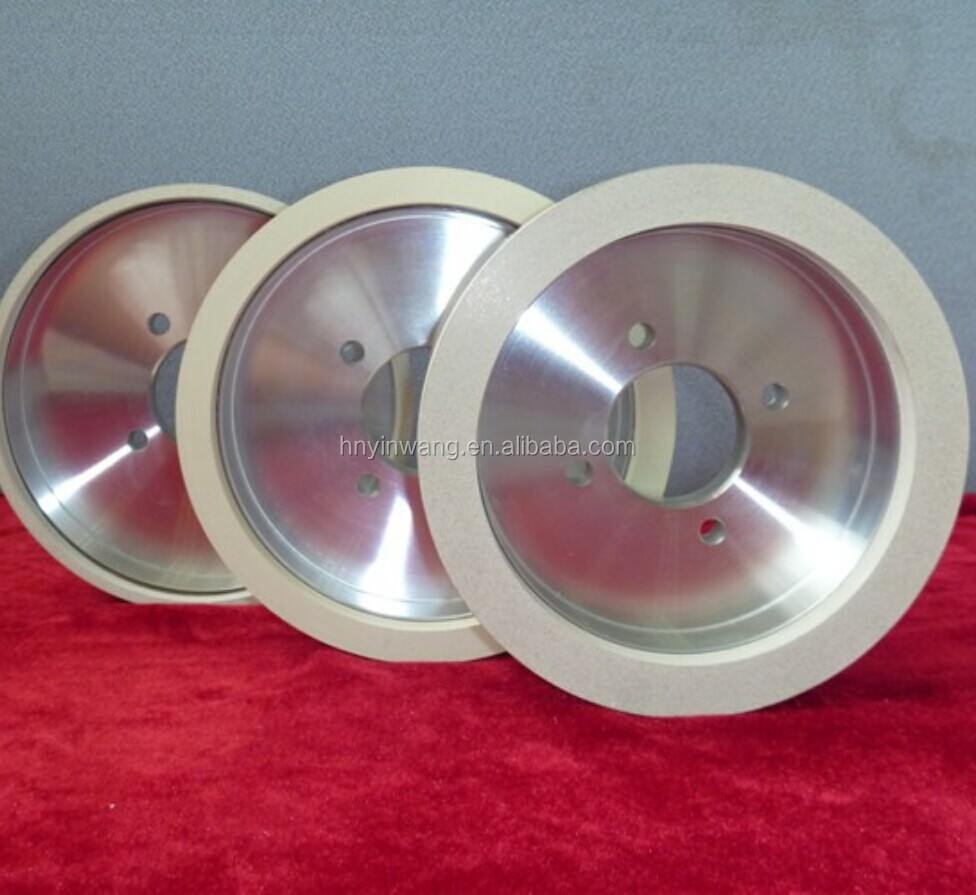

Good wear resistance ceramic diamond grinding wheels for bruting natural diamond
1. High grinding efficiency than that of metal bonded diamond grinding wheel
2. High abrasion resistance and less abrasive consumption
3.Small grinding force and low grinding temperature
4.High grinding precision of the work piece, good surface quality and good maintenance of the shape of workpiece
They are widely used in the fields of tungsten carbide, ceramics, glsasses, PCD, PCBN, CVD, natural diamond, stones, etc.
1.high quality of PCD & PCBN insert edges after sharpening; 2.short grinding time&long tool life
3.high efficiency and accuracy of sharpening; 4.remarkable decreasing of unitary grinding costs

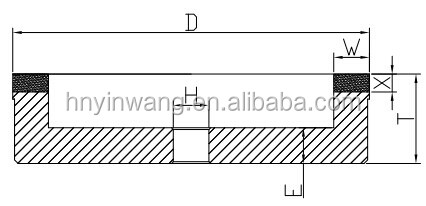

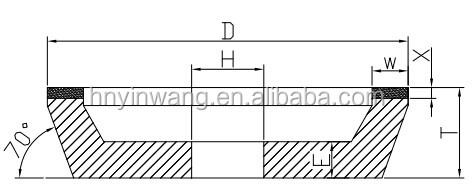

drawing pictures and specification:
Grain size selection of vitrified diamond grinding wheel:
Regrinding a blade edge profiling and sharpening of much worn inserts.
Standard grain size-can also getting a high sharpening efficiency and good quality machined surfaces .
Finishing grinding – getting a very good quality of machined surfaces.
Super finish grinding – getting a brilliant quality of machined surfaces.
How to sharp the tools with PCD & PCBN inserts?
Tools with PCD&PCBN inserts are very reten-tive, but demand an occasional sharpen-ing. In comparison with conventional tool mate-rials, the sharpening of PCD&PCBN tools requires another approach in scope of grindingmethods and grindingwheels char-acteristics. The sharpening of polycrystalline tools is a very challenging task both for users and for wheel manufacturers.
To ensure the proper condition of PCD&PCBN sharpening process the following fac-torsare indispensable: high precision grinding machine with stiff construction and vibration dampening system which can guarantee high preci-sion grinding, demanded during sharp-ening of PCD & PCBN inserts; specially designed grinding wheels ap-propriate for high efficient and precision machining, which assures getting an ex-cellent blade edge quality.
Packaging & Shipping
Machining parameters selection
20 m/s – recommended;
15÷30 m/s – acceptable*
Allowance rough grinding: standard grinding: finish grinding:
Infeed of grinding wheel must be done always out of machining zone.
