6*6*1.1mm Mono HPHT synthetic diamond dresser plate

FOB Reference Price:Get Latest Price
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
Yinwang
Material:
synthetic diamond
Usage:
making diamond tools
Abrasive Grain Sizes:
1.0mm to 6.0mm
color:
yellow
clarity:
good
SupplyAbility
SupplyAbility:
200 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packed in plastic bags then in a coardboard box or according to customers' requirement
Port
Zhengzhou
Lead Time :
within 7 working days after confirmed payment

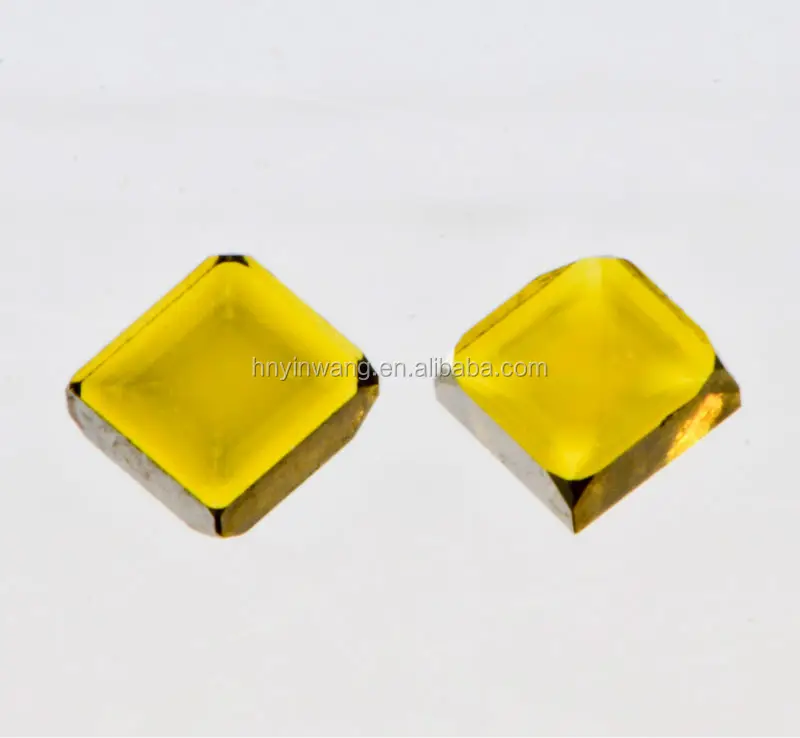

6*6*1.1mm Mono HPHT synthetic diamond dresser plate





Description:

Our mono synthetic diamond products are produced by high pressure, high temperature (HPHT). Synthetic diamond mono plate is cut from good crystal diamond; its grades are divided into  D12, D21, D22, D23; The product range offers a wide choice of geometries, edge lengths and cross-sectional areas to give the synthetic diamond tool and die maker unprecedented options and the opportunity to manufacture tools for a broad range of applications.



Characteristic :

1. regular square plates shape

2. Straight edge, almost no impurity

3.2.5 to 6.0 mm edge length, 1.0-1.2mm thickness , as for thikness 1.5mm and 2.0mm we can customized according to your order



Avaliable size:

 2.5*2.5*1.1mm

3.0*3.0*1.1mm

3.5*3.5*1.1mm

4.0*4.0*1.1mm

4.5*4.5*1.1mm

5.0*5.0*1.1mm

5.5*5.5*1.1mm

6.0*6.0*1.1mm

7.0*-7.0*1.1mm



Specification:

1. Best surface finish of any die material available.

2. Moth’s hardness 10

3. Good thermal stability
4.Good shock resistance



Main Application:

1. Used in making diamond tools like saw blade for cutting various stone.  And it's widely used for making wire saw, gang saw and etc.

2. For all kinds of geological exploration drilling tools, engineering drilling tools, and all varieties of diamond drilling tools. for cutting and dressing hard materials.

3. dressers for wheel dressing, a variety of special knivesburnishing toolswear parts, and wire drawing dies.

4. can be used to polish jewelry and for decoration, act as natural diamond



Photos just for reference.

D12:  Comparatively regular square plates shape, straight edge, almost no impurity and micron crack , 2.5-4.5mm edge length, 1.0-1.2mm thickness, high strength.




D22:  Comparatively regular square plates shape, straight edge, containing a bit back spot or cracks but not too much, 2.5-4.5mm edge length, 1.0-1.2mm thickness, lower than YWD12




D23:  Irregular plates shape, near square, not straight edge, containing a bit back spot or cracks, good transparency,2-4mm edge length, 1.0-1.2mm thickness




For more information welcome to ask freely.
